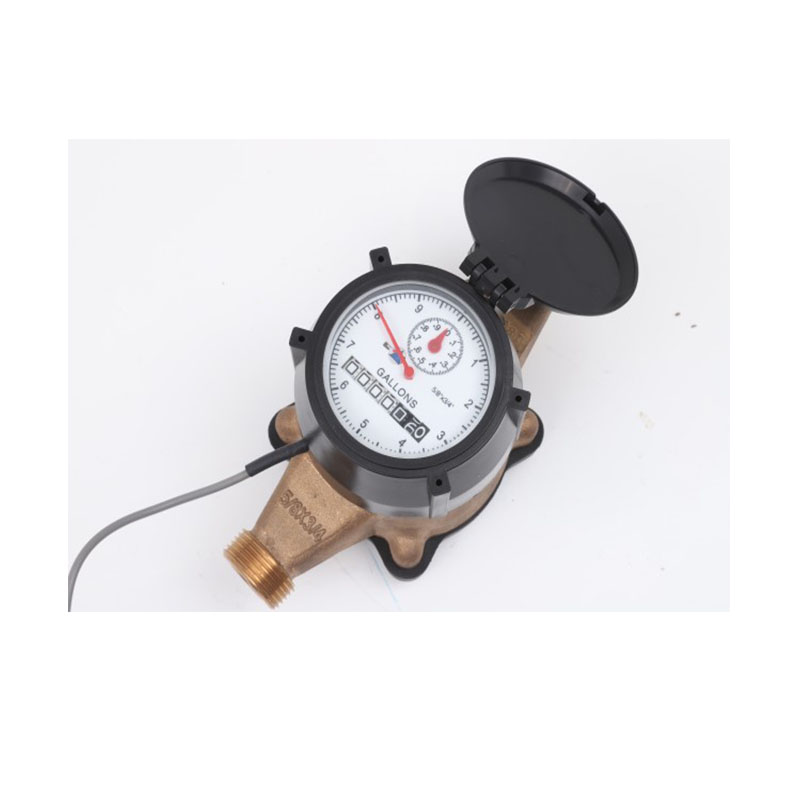

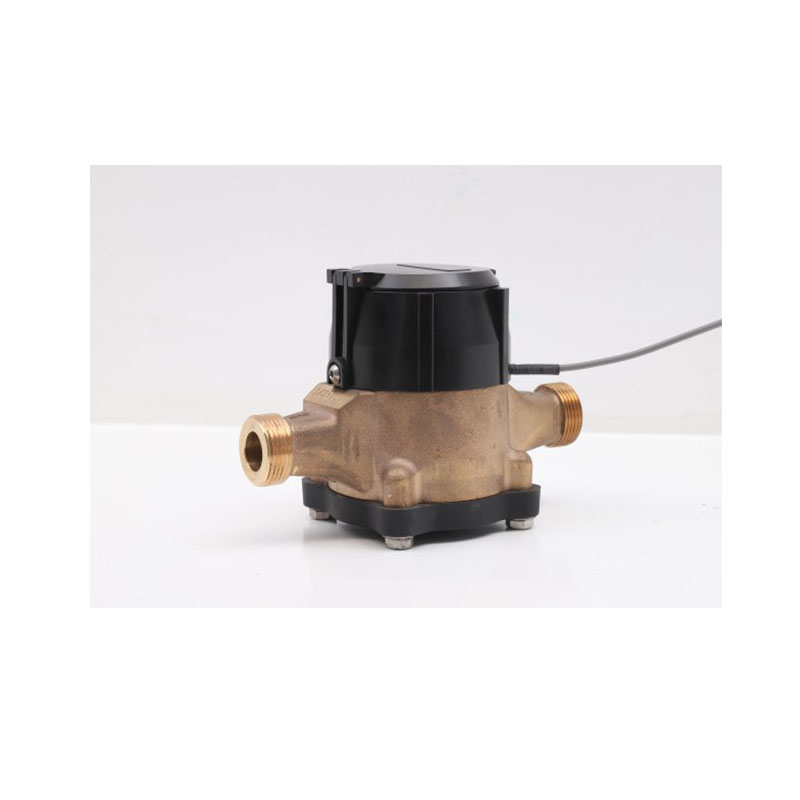

Gallon Water Meter
Compliance with Standard Technical data conforms to AWWA C70O Standard
Features
- Operating on a rotary piston principle
- Low starting flow rate and excellent metrological performance
- Magnetic drive, lower transmission resistance
- Copper encapsulated register and heat treated glass to eliminate dirt, moisture, infiltration and lens fogging
- The register can be replaced without removing the meter from the line.
- The register has a straight reading odometer typedisplay and a 360 test circle with center sweep hand,a low flow test dial hand, a leak indicator
- The main case material options: Brass, Bronze and Non-lead Bronze
Compliance with Standard
Technical data conforms to AWWA C70O Standard
Option
- Pulse output for selecting Installation Requirements
- Pipeline must be flushed before installation
- The meter can be installed in horizontal, vertical or inclined position
- A horizontal position with the register face upwards is recommended
- The meter should be constantly full of water during operation
